Steel Flange ASME B16.5
Product Description
Product Name : Steel Flange
Material:
Carbon steelA105, A105N, ST37.2, 20#, 35#, C40, Q235,
A350 LF2 CL1/CL2, A350 LF3 CL1/CL2,
A694 F42, F46, F50, F60, F65, F70,
A516 Gr.60, Gr.65, Gr.70
Alloy steelA182 F11, A182 F22
Austenitic stainless steelA182 F304/304L, F316L, A182 F316H,
F310, F321, F321H, F347, F347H
Duplex stainless steelA182 F51
Super Duplex stainless steelA182 F53, A182 F55, A182 F60
Nickel alloyNickel 200, Nickel 201
Titanium alloyTitan Gr.1, Titan Gr.2
HastelloyHastelloy C-276, Hastelloy C-22, Hastelloy C-4
InconelInconel 600, Inconel 625, Inconel 800, Inconel 800H
MonelMonel 400, Monel K500
Size : 1/2″-24 ” 26″-60″ (according to customers’ requirement)
Pressure: Class 150- Class 2500 PN 2.5- PN 160 5K-30K
Standard: HGT20592 ASME B16.5 ASME B16.47 JIS DIN 2635 BS 4504 EN1092-1 GOST 33259-2015 GOST120820 GOST 12821
Type:Weld Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Thread Flange, Lap Joint Flange, Plate Flange, Orifice Flange, Spectacle Flange, Figure 8 Flange, Paddle Blank, Paddle Spacer, Anchor Flange, Single Blind, Ring Spacer,Reducing Socket Weld flange, Reducing Weld Neck flange, Long Weld Neck Flange,SAE Flanges, Hydraulic Flanges,Customized Flanges with drawing.
Face: Can be raised face(RF), full face(FF), Ring joint(RTJ) , Groove, Tongue, or customized.

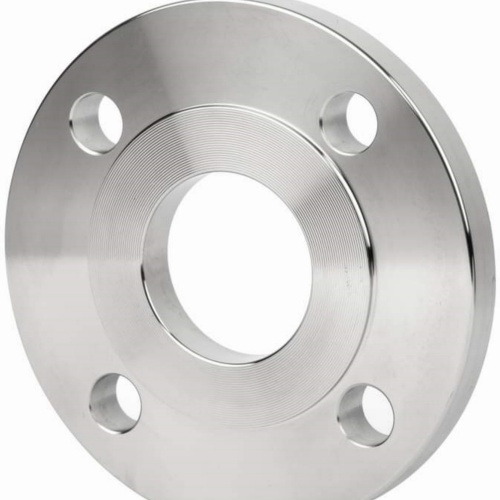

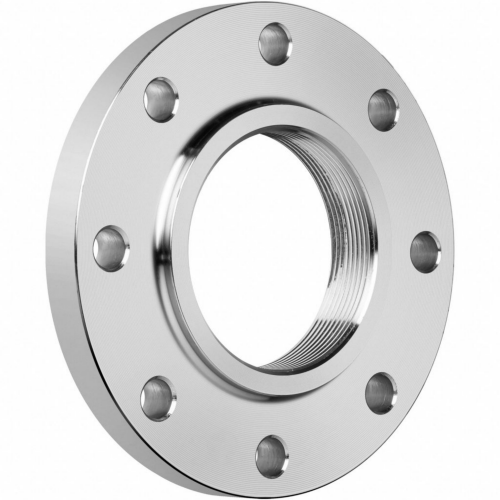

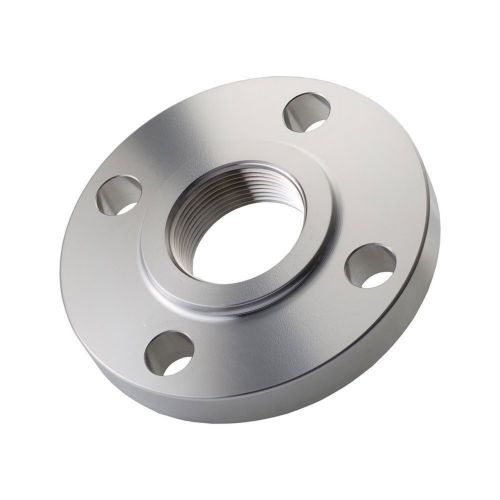

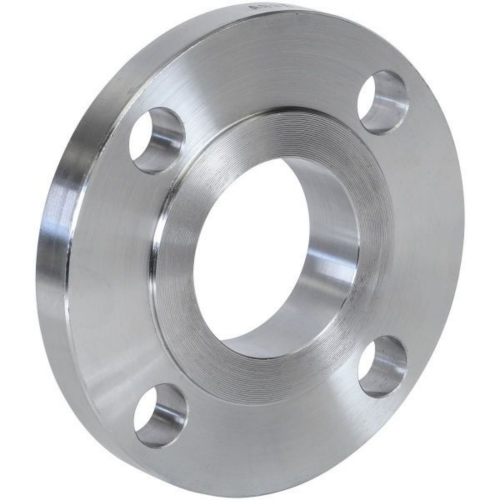

Pictures
Company Profile
Hebei Cangrun Pipeline Equipment Co., Ltd is a professional manufacturer of forged flanges and pressure vessel forgings;
We have the ability to integrate design, raw material procurement, cutting, forging, heat treatment, machining, mechanical testing,
non-destructive testing, mechanical typing, painting, packaging, and shipping operations. The annual production capacity is over 10000 tons,
with specifications ranging from DN15 to 6000mm. The maximum weight per unit of finished products is 20 tons, and the pressure ranges
from 150-2500 pounds, including national standards, American standards, British standards, German standards, Japanese standards,and
non-standard flanges and forgings.
The main materials used in production include high-quality carbon structural steel, low-alloy high-strength steel heat-resistant steel,
and various types of stainless steel (carbon body, austenite, matensite, dispersion hardening,duplex stainless steel)
The company covers an area of over 10000 square meters and currently has 105 fixed emplovees, including 8 management personnel
with high school education or above. The organizational chart is detalled in the attached table. The company has a cuting workshop,
forging workshop, machining workshop, and packaging workshop. Raw material warehouse, semi-finished product warehouse, finished product warehouse.
