How many types of flange connections can be divided into?

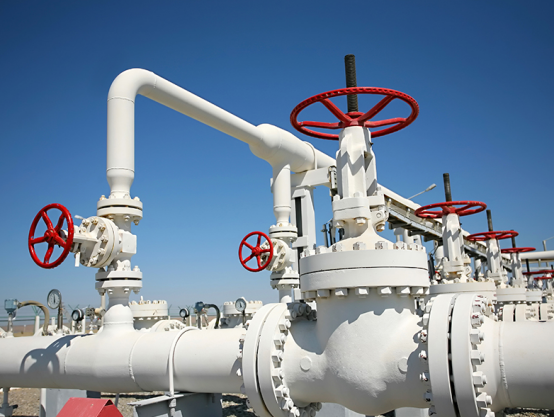

Flange connection is to fix two pipes, pipe fittings or equipment respectively on a flange plate first, add flange pads between the two flange plates, and fasten them together with bolts to complete the connection. Some pipe fittings and equipment have their own flanges, which are also flange connections. Flange connection is an important connection method for pipeline construction. The flange connection is easy to use and can withstand greater pressure. In industrial pipelines, flange connections are widely used. In the home, the pipe diameter is small and low pressure, and the flange connection is not visible. If you are in a boiler room or a production site, there are flanged pipes and equipment everywhere.

e5548962d01e4340663ff1eee3373c0

According to the connection method, flange connection types can be divided into: plate flat welding flange, neck flat welding flange, neck butt welding flange, socket welding flange, threaded flange, flange cover, neck butt welding ring Loose flanges, flat welding ring loose flanges, ring groove flanges and flange covers, large diameter flat flanges, large diameter high neck flanges, figure eight blind plates, butt welding ring loose flanges, etc.

6
