ANSI B16.5 Steel 20 Flange

Product Description

Flat Welded Flange/Plate Flange
These flat welding flanges are GOST, ASME B16.5 flat welding flange, ASME B16.47 flat welding flange, DIN 2634 flat welding flange, DIN 2635 flat welding flange, DIN 2630 flat welding flange, DIN 2636 flat welding method Flanges, DIN 2631 flat welding flanges, DIN 2637 flat welding flanges, etc. Flanges are parts that connect pipes to each other and are connected to pipe ends. There are holes on the flange, and bolts make the two flanges tightly connected. Gaskets are used to seal between flanges. Flat welding flanges are suitable for steel pipe connections with a nominal pressure not exceeding 2.5MPa. The sealing surfaces of flat welding flanges can be made of smooth, concave-convex and tongue-and-groove types.
Size
Flat welding flange: 3/8″~40″
DN10~DN1000
Pressure
American series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400

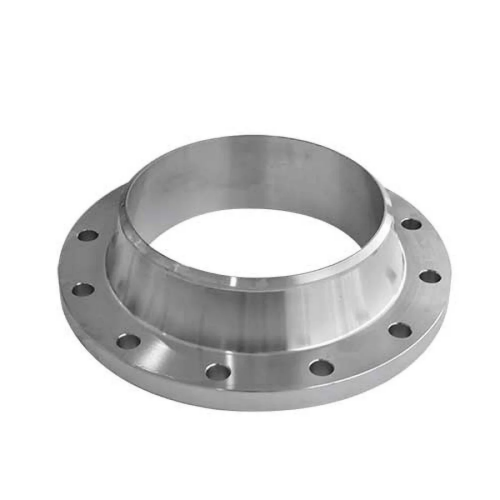

Butt welding flange/Weld Neck Flange/WN Flange
It refers to a flange with a neck and a round pipe transition and butt welding connection with the pipe. We produce ASME B16.5 butt welding flanges, GOST12820, GOST12821, GOST33259, ASME B16.47 butt welding flanges, DIN 2631 butt welding flanges Welding flanges, DIN 2637 butt welding flanges, DIN 2632 butt welding flanges, DIN 2638 butt welding flanges, DIN 2633 butt welding flanges, etc. Welding flanges are suitable for pipelines with large fluctuations in pressure or temperature or high temperature, High pressure and low temperature pipelines are also used for pipelines that transport expensive, flammable and explosive media. Butt welding flanges are not easily deformed, have good sealing, and are widely used.
Size
Butt welding flange: 3/8″~160″
DN10~DN4000
pressure
American series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange sealing surface type
American series: flat surface (FF), raised surface (RF), grooved surface ( G), Concave and convex surface (MFM), Ring connection surface (RJ)

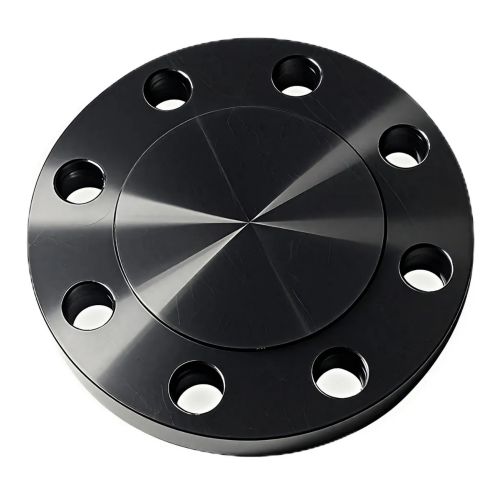

Blind Flange

Blind flanges are made of carbon steel,stainless steel and alloy steel,etc.They are used to seal or block off a pipe, like a cover or cap. We can provide a wide range of blind flanges,in accordance to standards like GOST, ASME B16.5,ASME B16.47,DIN 2634,DIN 2636,and so on.
Size
Blind Flange: 3/8″~100″
DN10~DN2500
Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange Facing Types
American Series:Flat Face (FF), Raised Face (RF), Groove (G), Female(F), Ring Joints Face(RJ)

Detailed Photos

Company Profile

Hebei Cangrun Pipeline Equipment Co., Ltd is  a professional manufacturer of forged flanges and pressure vessel forgings; We have the ability to integrate design, raw material procurement, cutting, forging, heat treatment, machining, mechanical testing, non-destructive testing, mechanical typing, painting, packaging, and shipping operations. The annual production capacity is over 10000 tons, with specifications ranging from DN15 to 6000mm. The maximum weight per unit of finished products is 20 tons, and the pressure ranges from 150-2500 pounds, including national standards, American standards, British standards, German standards, Japanese standards,and non-standard flanges and forgings.

The main materials used in production include high-quality carbon structural steel, low-alloy high-strength steel heat-resistant steel, and various types of stainless steel (carbon body, austenite, matensite, dispersion hardening,duplex stainless steel)

The company covers an area of over 10000 square meters and currently has 105 fixed emplovees, including 8 management personnel with high school education or above. The organizational chart is detalled in the attached table. The company has a cuting workshop, forging workshop, machining workshop, and packaging workshop. Raw material warehouse, semi-finished product warehouse, finished product warehouse.

FAQS

Q: Can you make the product as per client’s requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight.

Q: Where is your nearest loading port?
A: Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery,and approve the delivery after qualified.
B: Support third-party inspection.

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material.
A: Yes, the material can be chose according to your requirement.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
