Name
|
Forged Pipe Fittings
|
|
Dimension Specification
|
GB/T 7306,12716,14383,14626
ASME B16.11-2001(Revison of ASME 16.11-1996)
MSS-SP-79,83,95,97
|
|
Material specification
|
Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2
Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/317L/F321/F310/347/904 Size of raw material: DIS19~100MM round bar. |
|
Pressure
|
Threaded end–2000/3000/6000LBS
Socket weld end–3000/6000/9000LBS
Butt welding–SCH40/SCH80/SCH160/XXS
|
|
Connection way
|
Socket-weld
Threaded(NPT/BSPT)
Butt-welding
|
|
Type
|

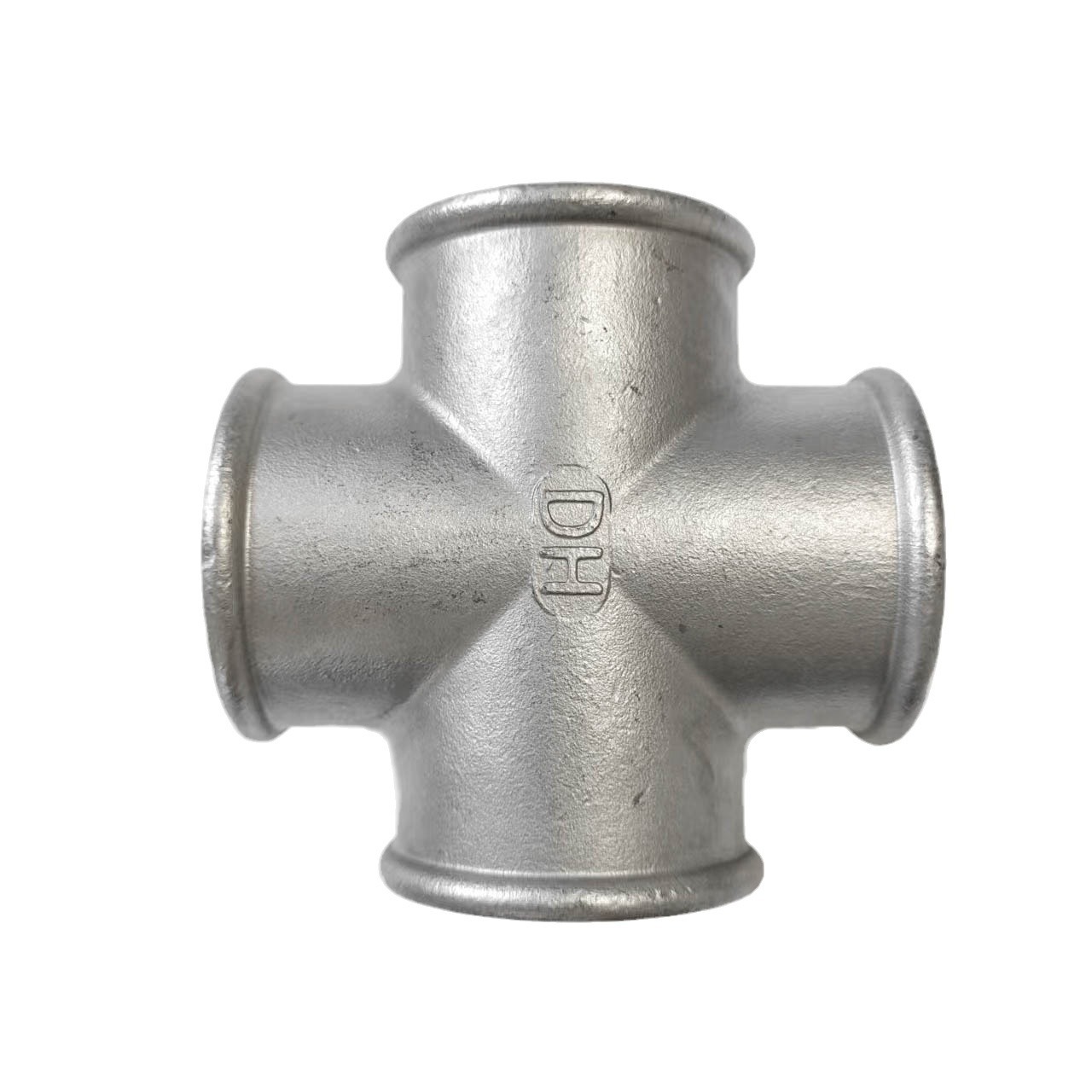

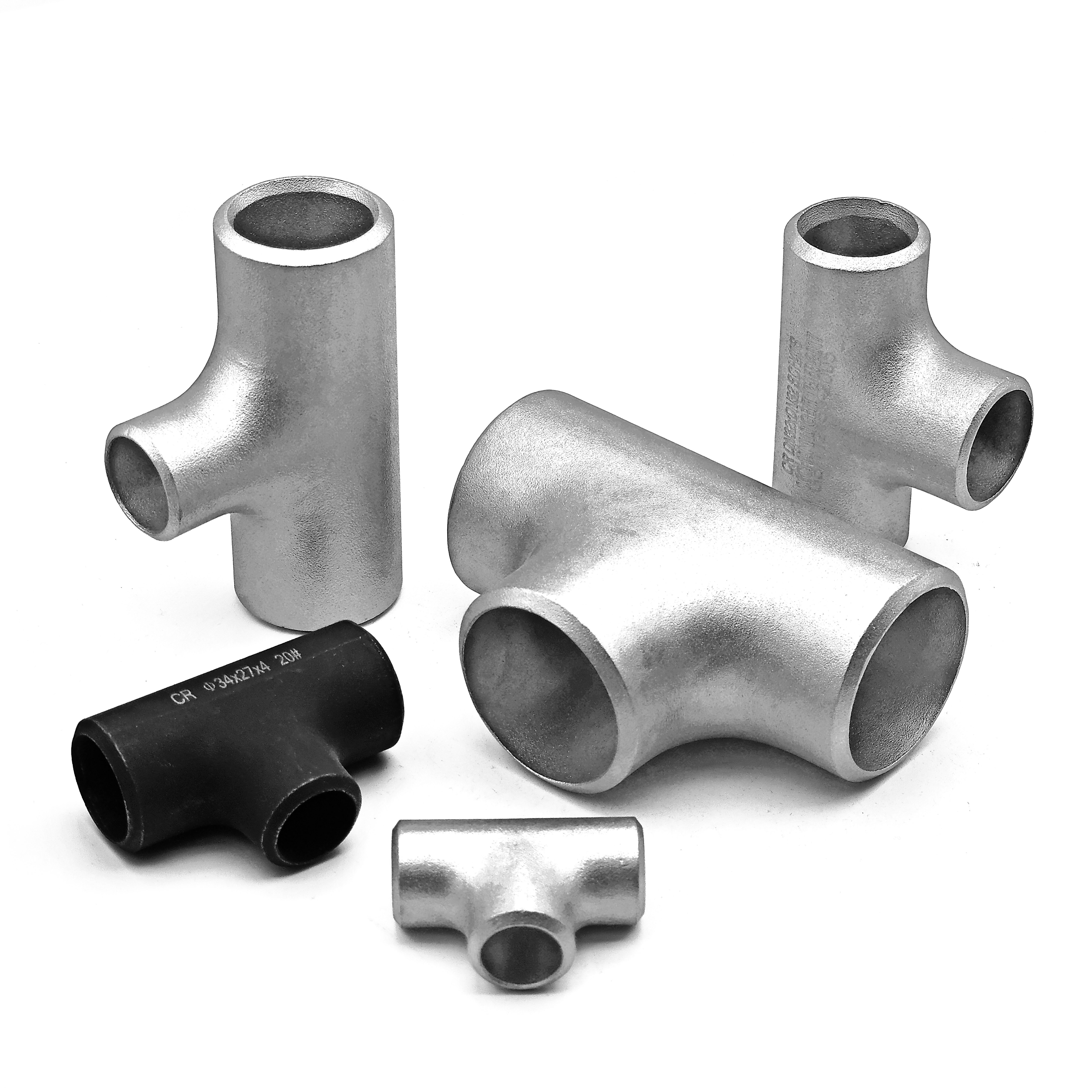

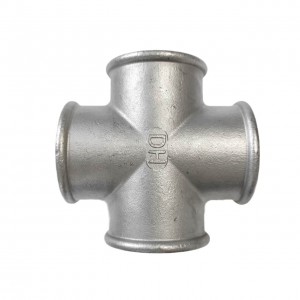

Elbow, tee, cross, coupling, half coupling, cap, plug, bushing, union, out-let, swage nipple, bull plug, reducer insert and hex, nipple, street elbow, boss, ect.
|
|
Marking
|
Carbon and alloy steel: marked by stamping.
Stainless steel: marked by electro-etched, jet printed or stamping.
1/2″-4″
|
|
Finishing
|
Carbon steel–Galvanized or black phos, phosphating.
Stainless steel–Pickled.
|
|
Application
|
Suitable for fire piping system,air,oil,gas,water supply.
|
|
Service
|
Buyer’s drawing or designs are available.
|
|
Package
|
1. Cartons
2. Wooden case
3. Plywood case
4. As the buyer’s requirements.
|
|
Delivery Details
|
According to the quantities and specifications of each order;
Normal delivery times is from 25 to 35 days after receiving the deposit.
|
